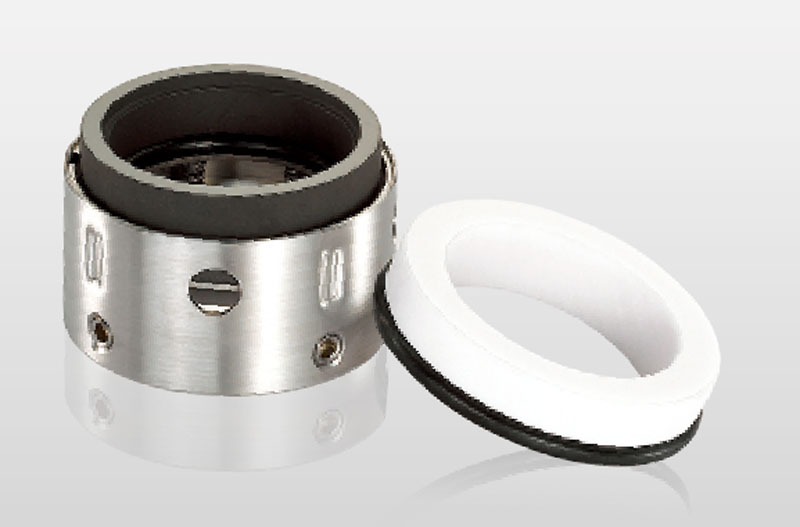

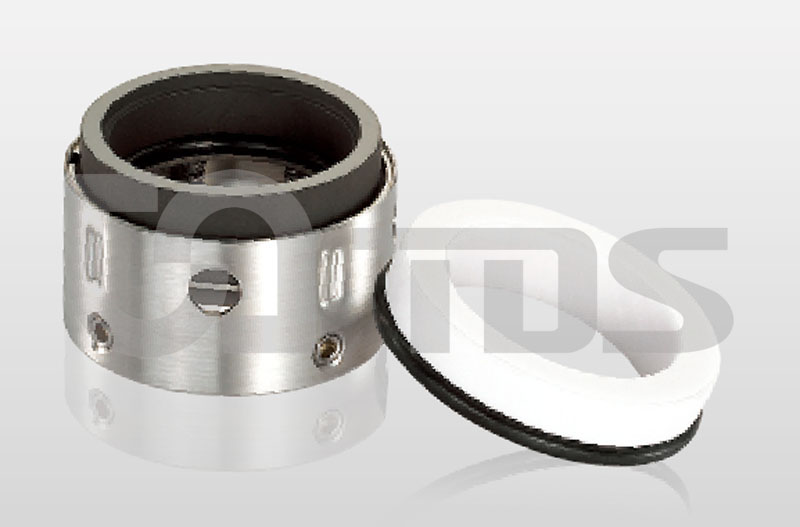

TDS 8-1 Componente de Sello Mecánico ( Reemplaza AESSEAL M01S,JOHN CRANE 8-1) (pulgadas)
Industrial Pump SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤1.7MPa
Velocidad: ≤25m/s
Temperatura: -30℃~+200℃
Asientos estacionarios:
1. TS 8-1 equipado con Asientos estacionarios tipo "P".
2. Asientos estacionarios tipo A, W y PP están disponibles.
● Anillo giratorio (Carbono/SiC/TC)
● Anillo estacionario (99% Cerámica/SiC/TC)
● Sello secundario (PTFE)
● Resorte y otras piezas (SUS304/SUS316)
Características estructurales:
1. Adopta o'ring compatible con el fluido usado como sellador del anillo giratorio ligado al resorte.
2. Se aplican a todos los tipos de equipamientos rotativos, tales como bombas centrífugas, o mezclador y triturador agitador.
3. Fijación mecánica que reduce el desgaste entre el eje de rotación y el manguito, sellado en los dos sentidos.
4. Tipo multi resorte y no balanceado; cumpliendo normas API 610.
|

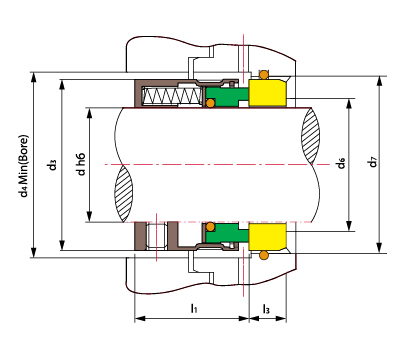

Tamaño de sello (pulgadas) |
d | d3 | d4 | d6 | d7 | l1 | l3 |
| 0.500 | 12.70 | 26.70 | 30.00 | 14.5 | 25.60 | 21.0 | 7.90 |
| 0.625 | 15.87 | 30.70 | 34.00 | 17.5 | 31.95 | 19.0 | 10.30 |
| 0.750 | 19.05 | 34.00 | 37.00 | 21.0 | 35.12 | 22.2 | 10.30 |
| 0.875 | 22.22 | 37.20 | 40.00 | 24.0 | 38.30 | 24.0 | 10.30 |
| 1.000 | 25.40 | 40.30 | 43.00 | 27.5 | 41.48 | 25.0 | 11.15 |
| 1.125 | 28.57 | 43.50 | 46.00 | 30.5 | 44.65 | 27.0 | 11.15 |
| 1.250 | 31.75 | 48.30 | 51.00 | 33.5 | 47.83 | 27.0 | 11.15 |
| 1.375 | 34.92 | 51.50 | 54.00 | 37.0 | 51.00 | 29.0 | 11.15 |
| 1.500 | 38.10 | 54.60 | 58.00 | 40.0 | 54.18 | 29.0 | 11.15 |
| 1.625 | 41.27 | 61.00 | 64.00 | 43.5 | 60.53 | 35.0 | 12.75 |
| 1.750 | 44.45 | 64.20 | 67.00 | 46.5 | 63.70 | 35.0 | 12.75 |
| 1.875 | 47.62 | 67.30 | 70.00 | 49.5 | 66.88 | 35.0 | 12.75 |
| 2.000 | 50.80 | 70.50 | 73.00 | 53.0 | 70.05 | 35.0 | 12.75 |
| 2.125 | 53.97 | 76.90 | 80.00 | 56.0 | 76.40 | 43.0 | 14.33 |
| 2.250 | 57.15 | 80.00 | 83.00 | 59.0 | 79.58 | 43.0 | 14.33 |
| 2.375 | 60.32 | 83.20 | 86.00 | 62.5 | 82.75 | 43.0 | 14.33 |
| 2.500 | 63.50 | 86.40 | 89.00 | 65.5 | 85.93 | 43.0 | 14.33 |
| 2.625 | 66.67 | 89.60 | 92.00 | 68.5 | 85.93 | 43.0 | 15.93 |
| 2.750 | 69.85 | 92.70 | 96.00 | 72.0 | 89.10 | 43.0 | 15.93 |
| 2.875 | 73.02 | 95.90 | 99.00 | 75.0 | 95.45 | 43.0 | 15.93 |
| 3.000 | 76.20 | 97.50 | 100.00 | 78.5 | 98.63 | 43.0 | 15.93 |
| 3.125 | 79.37 | 100.70 | 104.00 | 81.5 | 101.80 | 43.0 | 19.84 |
| 3.250 | 82.55 | 105.40 | 108.00 | 84.5 | 104.98 | 43.0 | 19.84 |
| 3.375 | 85.73 | 108.60 | 111.00 | 88.0 | 108.15 | 43.0 | 19.84 |
| 3.500 | 88.90 | 111.80 | 115.00 | 91.0 | 111.13 | 43.0 | 19.84 |
| 3.625 | 92.08 | 115.00 | 118.00 | 94.0 | 114.35 | 43.0 | 19.84 |
| 3.750 | 95.25 | 118.10 | 121.00 | 97.5 | 117.68 | 43.0 | 19.84 |
| 3.875 | 98.43 | 121.30 | 124.00 | 100.5 | 120.85 | 43.0 | 19.84 |
| 4.000 | 104.60 | 124.50 | 127.00 | 103.5 | 124.03 | 43.0 | 19.84 |
| 4.125 | 104.78 | 130.20 | 134.00 | 107.0 | 130.38 | 42.9 | 19.84 |
| 4.250 | 107.65 | 133.40 | 137.00 | 110.0 | 133.55 | 42.9 | 19.84 |
| 4.375 | 111.13 | 136.50 | 140.00 | 113.5 | 136.72 | 42.9 | 19.84 |
| 4.500 | 114.30 | 139.70 | 143.00 | 116.5 | 139.90 | 42.9 | 19.84 |
| 4.625 | 117.48 | 142.90 | 146.00 | 119.5 | 143.08 | 42.9 | 19.84 |
| 4.750 | 120.65 | 146.10 | 146.00 | 122.5 | 146.25 | 42.9 | 19.84 |
| 4.875 | 123.83 | 149.20 | 153.00 | 126.0 | 149.43 | 42.9 | 19.84 |
| 5.000 | 127.00 | 152.40 | 156.00 | 129.0 | 152.60 | 42.9 | 19.84 |
| 5.125 | 130.18 | 155.60 | 159.00 | 132.0 | 155.77 | 42.9 | 19.84 |
| 5.250 | 133.35 | 165.10 | 168.00 | 135.5 | 158.95 | 50.8 | 19.84 |
| 5.375 | 136.53 | 168.28 | 171.45 | 138.5 | 162.12 | 50.8 | 19.84 |
| 5.500 | 139.70 | 171.50 | 175.00 | 141.5 | 165.30 | 50.8 | 19.84 |
| 5.625 | 142.88 | 174.60 | 178.00 | 145.0 | 168.47 | 50.8 | 19.84 |
| 5.750 | 146.05 | 177.80 | 181.00 | 149.0 | 177.23 | 50.8 | 25.40 |
| 5.875 | 149.23 | 181.00 | 14.00 | 152.5 | 180.41 | 50.8 | 25.40 |
| 6.000 | 152.40 | 184.20 | 188.00 | 155.5 | 183.59 | 50.8 | 25.40 |
