• Features

Face seal,static inside sealing-type VB

Face seal,static inside sealing-type CB

Type VB:

Face seal or flange seal

for static outside sealing



Application Range

Pressure: ≦ 350 bar

Temperature: -150～+225℃



*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

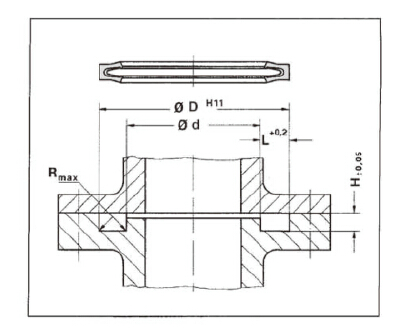

Groove O.D.	Groove I.D.	Groove Width	Groove Depth	Radius	equivalent O-Ring Cord
¢D	¢d	L	H	R	Thickness	O-Ring Code
32～44.9	D-7.2	3.6	2.25	0.4	2.62	B
45～79.9	D-9.6	4.8	3.1	0.6	3.53	C
80～109.9	D-14.2	7.1	4.7	0.8	5.33	D
110～700	D-19.0	9.5	6.1	0.8	6.99	E

Example of an order

Type                          VC

Groove I.D.               ¢d=100 mm

Groove O.D.             ¢D=85.8mm

Groove depth           H=4.7mm
