• Features

Reciprocating rod seal-type VP



Reciprocating rod seal-type CP

Type VP:

Rod seal for reciprocating

application





Application Range

Pressure: ≦ 350 bar

Temperature: -150～+225℃

Sliding speed: ≦15 m/s



*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

*Reciprocating speed >8m/s,need a retainer ring and increase.

25-30%width of the groove.

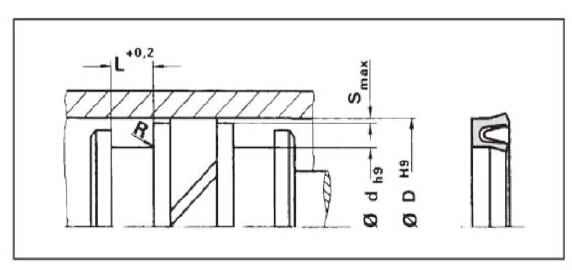

Piston Diameter	Groove Bottom	Groove Width	Gap	Radius	equivalent O-Ring Cord
¢D	¢d	L	S	R	Thickness	O-Ring Code
6～13.9	D-2.9	2.4	0.06	0.4	1.78	A
14～24.9	D-4.5	3.6	0.06	0.4	2.62	B
25～45.9	D-6.2	4.8	0.07	0.6	3.53	C
46～124.9	D-9.4	7.1	0.08	0.8	5.33	D
125～700	D-12.2	9.5	0.12	0.8	6.99	E

Example of an order

Type                              VP

Piston diameter        ¢D=100 mm

Groove bottom           ¢d=90.6mm

Groove width               L=7.1mm
