• Features

Límites de operación:
Presión: ≤1.2MPa
Velocidad: ≤10m/s
Temperatura: -20℃~+90℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC/Cerámica)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/NBR/EPDM)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

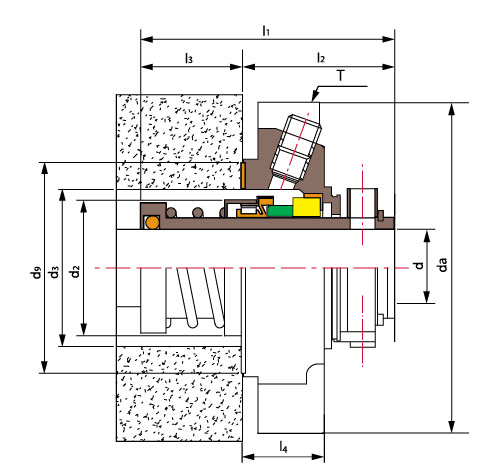

d (pulgadas)	d2	d3		d9	da	l1	l2	l3	l4	T
		min	max
1.000	1.512	1.634	2	2.362	4.134	2.579	1.614	0.965	0.906	1/4NPT
1.125	1.669	1.75	2.05	2.362	4.134	2.677	1.634	1.043	0.906	1/4NPT
1.250	1.772	1.89	2.25	2.559	4.331	2.736	1.654	1.083	0.906	1/4NPT
1.375	1.933	2	2.42	2.677	4.213	2.854	1.732	1.122	1.024	1/4NPT
1.500	2.02	2.146	2.625	2.874	4.843	2.854	1.732	1.122	1.024	1/4NPT
1.750	2.354	2.48	2.812	3.11	5.118	3.012	1.752	1.26	1.024	1/4NPT
1.875	2.433	2.559	2.94	3.228	5.118	3.071	1.772	1.299	1.024	1/4NPT
2.000	2.551	2.677	3.19	3.346	5.827	3.169	1.85	1.319	1.102	3/8NPT
2.125	2.795	2.875	3.437	3.74	5.512	3.287	1.85	1.437	1.102	3/8NPT
2.250	2.874	2.992	3.56	3.78	6.181	3.287	1.85	1.437	1.102	3/8NPT
2.375	3.012	3.11	3.59	3.937	6.181	3.366	1.85	1.516	1.102	3/8NPT
2.500	3.209	3.287	3.8	4.173	6.693	3.465	1.909	1.555	1.102	3/8NPT
2.625	3.268	3.374	3.937	4.252	6.378	3.465	1.909	1.555	1.102	3/8NPT
