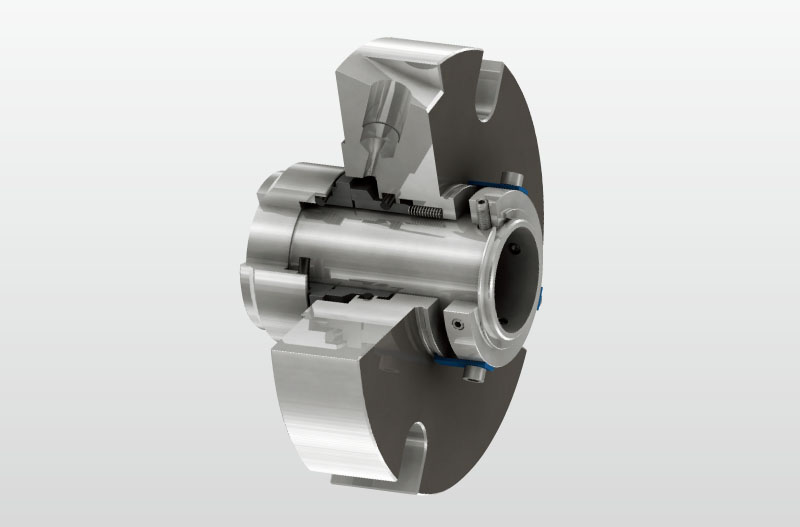

• Features

Límites de operación:
Presión: ≤2.5MPa
Velocidad: ≤16m/s
Temperatura: -40℃~+220℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/TC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/NBR/EPDM)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)


d(mm)	d2	d3		l1	l2	l3	l4	da	a1	s
		min	max
25	43.0	44.0	51.5	67	42.4	24.6	25.4	105	62	13.2
28	46.0	47.0	52.0	67	42.4	24.6	25.4	105	62	13.2
30	48.0	49.0	56.0	67	42.4	24.6	25.4	105	65	13.2
32	49.8	51.0	57.0	67	42.4	24.6	25.4	110	67	13.2
33	49.8	51.0	57.0	67	42.4	24.6	25.4	110	67	13.2
35	53.0	54.0	61.5	67	42.4	24.6	25.4	113	70	13.2
38	56.0	57.0	66.0	67	42.4	24.6	25.4	123	75	13.2
40	58.0	59.0	68.0	67	42.4	24.6	25.4	123	75	14.2
42	60.5	61.5	69.0	67	42.4	24.6	25.4	133	80	14.2
43	60.5	61.5	70.5	67	42.4	24.6	25.4	133	80	14.2
45	62.5	64.0	73.0	67	42.4	24.6	25.4	138	81	14.2
48	65.6	67.0	75.0	67	42.4	24.6	25.4	138	84	14.2
50	68.0	69.0	78.0	67	42.4	24.6	25.4	148	87	14.2
53	72.0	73.0	87.0	67	42.4	24.6	25.4	148	97	18.0
55	73.0	74.0	83.0	67	42.4	24.6	25.4	148	90	18.0
60	78.0	79.0	91.0	67	42.4	24.6	25.4	157	102	18.0
65	84.8	85.7	98.5	67	42.4	24.6	25.4	163	109	18.0
70	93.0	95.0	108.0	67	42.4	24.6	25.4	178	118	18.0
75	100.0	101.6	118.0	84	57.4	26.6	28.0	190	129	18.0
80	106.4	108.0	124.0	84	57.4	26.6	28.0	195	135	18.0
85	109.5	111.1	128.0	84	57.4	26.6	28.0	198	139	22.0
90	115.9	117.5	135.0	84	57.4	26.6	28.0	205	145	22.0
95	119.1	120.7	138.0	84	57.4	26.6	28.0	208	148	22.0
100	125.4	127.0	144.0	84	57.4	26.6	28.0	218	154	22.0
