• Features

Límites de operación:
Presión: ≤3MPa
Velocidad: ≤20m/s
Temperatura: -80℃~+200℃(enfriamiento en agua)

● Anillo giratorio (SiC/Carbono/TC)
● Anillo estacionario (SiC)
● Sello secundario (VITÓN/AFLAS/Kalrez)
● Otras piezas (C-276/Duplex/316)

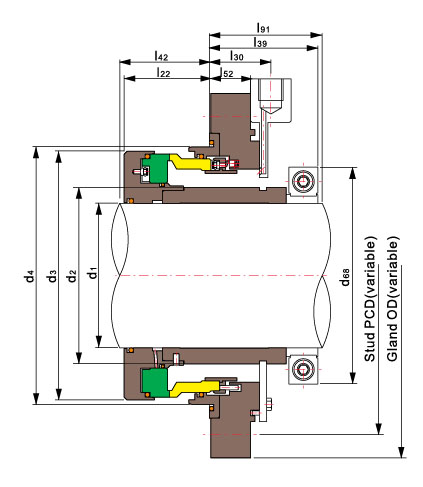

d1	d2	d3	d4	d68	l22	l30	l39	l42	l52	l91
(mm)
30	35	67	73	73	32.5	34	54.5	35.5	20	57.5
41.3	47	85	91	89	32.5	37	60.5	35.5	23	63.5
48	54	90	96	93	34.5	40	63.5	37.5	26	66.5
55	62	100	106	104	34.5	40	63.5	37.5	26	66.5
70	78	119	125	121	40.5	40	63.5	43.5	26	66.5
76.2	85	130	136	135	47.5	41	66.5	50.5	27	69.5
86	96	138.5	144.5	141	45.5	41	66.5	48.5	27	69.5
92	102	148	154	147	45.5	41	66.5	48.5	27	69.5
112	122	172	178	186	59	42.5	75	62	28.5	78
124	134	187	193	195	59	42.5	75	62	28.5	78
140	152	205	211	215	59	42.5	75	62	28.5	78
158	170	225	231	235	60.5	46	78.5	63.5	32	81.5
165.1	178	240	246	245	60	46.5	79	63	32.5	82
194	208	266	272	280	60	46.5	79	63	32.5	82
200	215	275	281	285	67.4	49.5	82	70.4	35.5	85
220	234	288	294	295	69.3	49.5	82	72.3	35.5	85
