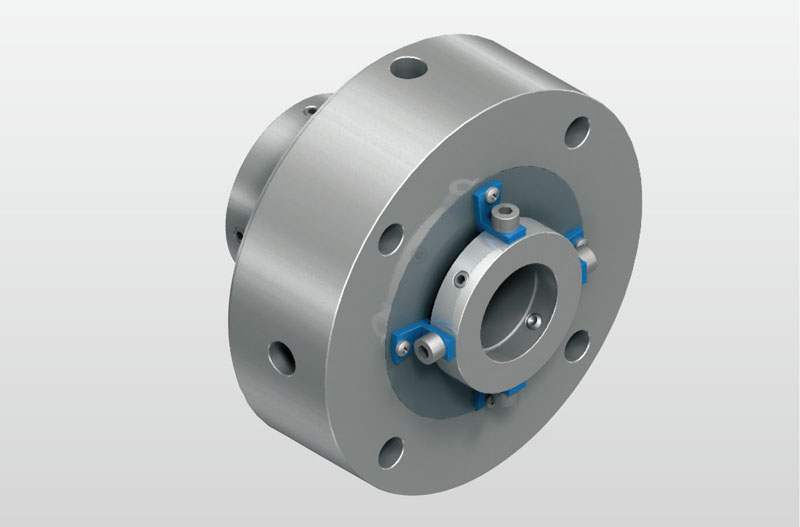

TDSSC-J08 Sello Mecánico Tipo Cartucho Simple y Doble (Reemplaza JOHN CRANE 1648 ) (pulgadas)
Cartridge SealContact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Límites de operación:
Presión: ≤6.9MPa
Velocidad: ≤25m/s
Temperatura: -40℃~+260℃
● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (Anillo encapsulado/PTFE/EPDM)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)
|

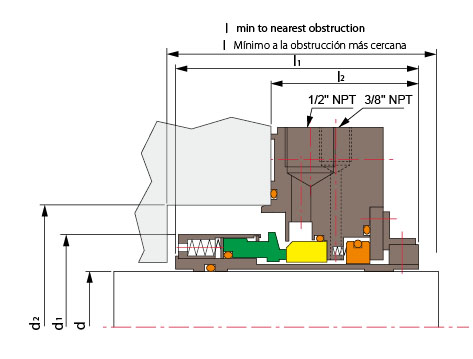

d (pulgadas) |
d1 | d2 | l1 | l2 | l |
| 1.000 | 2.125 | 2.500 | 3.812 | 2.562 | 5.750 |
| 1.125 | 2.375 | 2.750 | 4.125 | 2.562 | 5.750 |
| 1.250 | 2.500 | 2.875 | 4.125 | 2.562 | 5.750 |
| 1.375 | 2.625 | 3.000 | 4.125 | 2.562 | 5.750 |
| 1.500 | 2.750 | 3.125 | 4.125 | 2.562 | 5.750 |
| 1.625 | 3.000 | 3.375 | 4.437 | 2.562 | 5.750 |
| 1.750 | 3.125 | 3.500 | 4.437 | 2.562 | 5.750 |
| 1.875 | 3.250 | 3.625 | 4.437 | 2.562 | 5.750 |
| 2.000 | 3.375 | 3.750 | 4.437 | 2.562 | 6.500 |
| 2.125 | 3.500 | 3.875 | 4.437 | 2.562 | 6.500 |
| 2.250 | 3.625 | 4.000 | 4.437 | 2.625 | 6.500 |
| 2.375 | 3.750 | 4.125 | 4.500 | 2.625 | 6.500 |
| 2.500 | 3.812 | 4.187 | 4.500 | 2.625 | 6.500 |
| 2.625 | 3.937 | 4.312 | 4.500 | 2.625 | 6.500 |
| 2.750 | 4.125 | 4.500 | 4.500 | 2.781 | 6.500 |
| 2.875 | 4.250 | 4.625 | 4.656 | 2.781 | 6.500 |
| 3.000 | 4.375 | 4.750 | 4.656 | 2.781 | 6.500 |
| 3.125 | 4.500 | 4.875 | 4.656 | 2.781 | 7.000 |
| 3.250 | 4.625 | 5.000 | 4.656 | 2.781 | 7.000 |
| 3.375 | 4.750 | 5.125 | 4.656 | 2.781 | 7.000 |
| 3.500 | 4.875 | 5.250 | 4.656 | 2.781 | 7.000 |
| 3.625 | 5.125 | 5.500 | 4.656 | 2.781 | 7.000 |
| 3.750 | 5.250 | 5.625 | 4.656 | 2.781 | 7.000 |
| 3.875 | 5.375 | 5.750 | 4.656 | 2.781 | 7.000 |
| 4.000 | 5.500 | 5.875 | 4.656 | 2.781 | 7.000 |
| 4.125 | 5.625 | 6.000 | 4.656 | 2.781 | 7.000 |
| 4.250 | 5.750 | 6.125 | 4.656 | 2.781 | 7.000 |
