• Features

Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤18m/s
Temperatura: +205℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

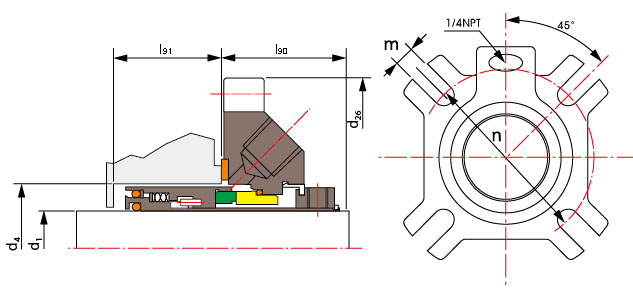

d1 (mm)	d4		d26	l90	l91	n		m
	min	max				min	max
24	40.0	49.2	104.8	36.0	32	66.7	95.5	11.1
25	41.0	49.2	104.8	36.0	32	66.7	95.3	11.1
28	44.0	52.4	108.0	36.0	32	69.9	98.4	11.1
30	46.0	55.6	111.0	36.0	32	73.0	101.6	11.1
32	47.6	55.6	111.0	36.0	32	73.0	101.6	11.1
33	49.0	58.7	114.3	36.0	32	73.0	101.6	11.1
35	50.8	58.7	114.3	36.0	32	77.8	104.8	11.1
38	57.2	63.5	127.0	37.0	33	87.3	114.3	14.3
40	60.0	63.5	127.0	37.0	33	87.3	114.3	14.3
43	63.0	66.7	133.4	37.0	33	90.5	120.7	14.3
45	63.5	66.7	133.4	37.0	33	90.5	120.7	14.3
48	66.7	76.2	139.7	37.0	33	98.4	127.0	14.3
50	69.8	76.2	139.7	37.0	33	98.4	127.0	14.3
53	73.0	84.1	146.0	37.0	33	111.1	130.2	17.5
55	73.0	84.1	146.0	37.0	33	111.1	130.2	17.5
58	79.4	90.5	152.4	37.0	33	117.5	136.5	17.5
60	79.4	90.5	152.4	37.0	33	117.5	136.5	17.5
63	82.6	98.4	158.8	37.0	36	123.8	142.9	17.5
65	88.9	98.4	158.8	37.5	36	123.8	142.9	17.5
70	95.0	98.4	158.8	37.5	36	123.8	142.9	17.5
