• Features

Límites de operación:
Presión: ≤2.8MPa
Velocidad: ≤25m/s
Temperatura: -30℃~205℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (SiC/TC)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

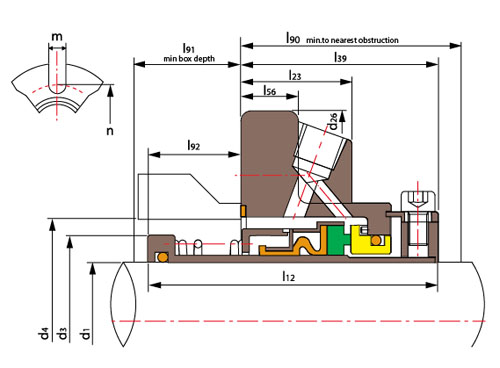

d1 (mm)	d2	d4		d26	l12	l23	l39	l56	l90	l91	l92	m	n
		min	max
25	34.9	38.1	48	101.6	69.6	34.4	49.6	13.5	50.8	23.1	20	13.3	71.2
28	38.1	41.3	51.2	104.8	65.9	36.7	52.4	13.5	54	16.7	13.5	13.3	74.5
30	42.8	46	56.5	108	69	36.7	52.4	13.5	54	19.8	16.7	13.3	81.6
32	42.8	46	58.3	108	69	36.7	52.4	13.5	54	19.8	16.7	13.3	81.6
33	46	49.2	61.5	111.1	66.7	36.7	52.4	13.5	54	17.5	14.3	13.3	84.8
35	46	49.2	61.5	111.1	66.7	36.7	52.4	13.5	54	17.5	14.3	13.3	84.8
38	50.8	54	68.1	123.8	75.2	37.8	54	15.1	55.6	24.4	21.2	13.3	91.4
40	54	57.2	71.4	127	76.8	37.8	54	15.1	55.6	26	22.8	14.3	95.7
43	57.2	60.3	74.1	133.4	77.2	37.8	54	15.1	55.6	26.4	23.2	14.3	98.4
45	57.2	60.3	74.1	133.4	77.2	37.8	54	15.1	55.6	26.4	23.2	14.3	98.4
48	60.3	63.5	74.1	133.4	77.2	37.8	54	15.1	55.6	26.4	23.2	14.3	98.4
50	68.2	69.9	76.6	139.7	87.7	40.7	58.7	27	60.3	32.2	29	14.3	101.6
53	71.4	73	85.3	148.8	87.7	40.7	58.7	15.1	60.3	32.2	29	17.4	113.5
55	69.9	73	85.3	148.8	90.9	40.7	58.7	15.1	60.3	35.4	32.2	17.4	113.5
58	69.9	75	88.5	165.1	90.9	40.7	58.7	15.1	60.3	35.4	32.2	17.4	116
60	77.8	79.4	91.7	165.1	88.1	43.6	62.6	15.9	64.2	28.6	25.5	17.4	119.9
63	82.6	85.7	98.8	171.5	97.3	43.6	65.1	15.9	66.7	35.4	32.2	17.4	127
65	82.6	85.7	98.8	171.5	97.3	43.6	65.1	15.9	66.7	35.4	32.2	17.4	127
68	88.9	92.1	103.2	171.5	101	41.2	63.5	15.9	65.1	40.7	37.5	17.4	131.3
70	88.9	92.1	103.2	171.5	101	41.2	63.5	17.4	65.1	40.7	37.5	17.4	131.3
75	100	101.6	113.5	196.9	106	45.4	65.1	\	66.7	44.1	40.9	20.6	145.3
80	103.2	104.8	116.8	188.9	106.4	40.5	63.8	\	66.9	45.8	42.6	20.6	148.5
85	109.5	111.1	123.2	206.4	111.1	40.5	65.1	\	68.3	49.2	46.1	20.6	154.8
90	115.9	117.5	129.5	212.7	117.5	40.5	65.1	\	68.3	55.6	52.4	17.4	158.8
95	117.7	120	132.1	222.3	112.7	40.5	65.1	\	68.3	50.8	47.6	17.4	172
100	125.4	127.8	139.7	228.6	122.2	40.5	65.1	\	68.3	60.3	57.2	20.6	171.7
125	165.1	167.5	184.4	304.8	146	41.4	77.3	\	80.5	71.9	68.8	20.6	254
