Límites de operación:
Presión: 0~1MPa
Velocidad: ≤13m/s
Temperatura: -30℃~+200℃

● Anillo giratorio (SiC/TC/Carbono)
● Anillo estacionario (Carbono/SiC/TC)
● Sello secundario (NBR/VITÓN/ EPDM)
● Fuelles (NBR/EPDM/VITÓN)
● Junta tipo copa (NBR/VITÓN/ EPDM)
● Otras piezas (SUS304/SUS316)

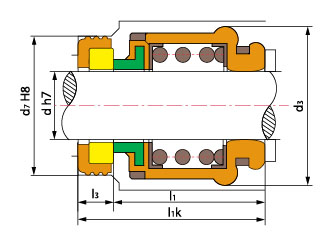

Tamaño de sello d (mm)	d	d3	d7	l1k	l1	l3
1 1/8"	28.575	50.0	44.450	41.1	30.0	11.1
1 1/2"	38.100	66.0	53.975	45.5	35.5	10.0
2"	50.800	75.5	69.850	58.2	45.2	13.0
