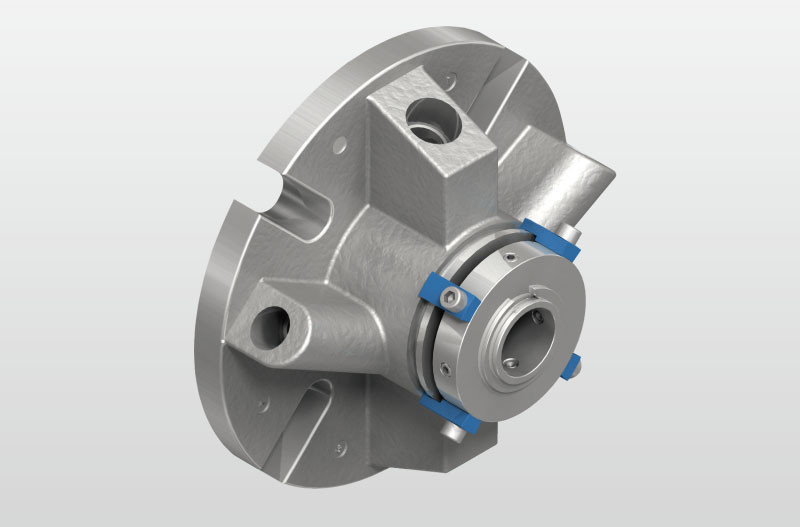

• Features

Límites de operación:
Presión: ≤2.1MPa (Diámetro del eje≤75mm)
≤1.3MPa (Diámetro del eje>75mm)
Velocidad: ≤25m/s
Temperatura: -30℃~+205℃

● Anillo giratorio (SiC/TC)
● Anillo estacionario (SiC/Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE)
● Otras piezas (SUS304/SUS316/ Titanio/Hastelloy-C)

d1 (mm)	d2	d4		d26	l12	l23	l39	l56	l90	l91	l92	m	n
		min	max
24	39.7	41.3	48	101.6	65.4	34.4	49.6	13.5	50.8	18.9	15.8	13.3	71.2
25	39.7	41.3	48	101.6	65.4	34.4	49.6	13.5	50.8	18.9	15.8	13.3	71.2
28	42.9	44.5	51.2	104.8	67.3	36.7	52.4	13.5	54	18.1	15	13.3	74.5
30	44.5	46.1	56.5	108	65.1	36.7	52.4	13.5	54	15.9	12.7	13.3	79.9
32	46	47.6	58.3	108	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	81.6
33	49.3	50.8	61.5	111.1	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	84.8
35	49.3	50.8	61.5	111.1	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	84.8
38	55.5	57.2	68.1	123.8	69.7	37.8	54	15.1	55.5	18.9	15.7	13.3	91.4
40	58.7	60.3	71.4	127	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	95.7
43	61.1	63	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
45	61.1	63	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
48	64.7	66.7	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
50	67.9	70	76.6	139.7	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	101.6
53	71.1	73	85.3	148.8	75.3	40.7	58.7	15.1	60.3	19.7	16.5	17.4	113.5
55	72.9	75	85.3	148.8	75.3	40.7	58.7	15.1	60.3	19.7	16.5	17.4	113.5
58	74.2	76.2	88.5	165.1	75.3	40.7	58.7	15.1	60.3	19.7	16.5	17.4	116
60	77.4	79.4	91.7	165.1	77.8	43.6	62.6	15.9	64.2	18.3	15.2	17.4	119.9
63	83.8	85.7	98.8	171.5	75.7	43.6	65.1	15.9	66.7	13.8	10.6	17.4	127
65	83.8	85.7	98.8	171.5	75.7	43.6	65.1	15.9	66.7	13.8	10.6	17.4	127
68	90.2	92.1	103.2	171.5	78.4	41.3	63.5	15.9	65.1	18.1	14.9	17.4	131.3
70	90.2	92.1	103.2	171.5	78.4	41.3	63.5	15.9	65.1	18.1	14.9	20.6	131.3
75	98.1	99.9	113.5	196.9	78.4	45.4	65.1	17.4	66.7	16.5	13.4	20.6	145.3
80	102.2	104.8	116.8	189	80.2	40.5	63.8	\	66.9	18	14.8	20.6	148.5
85	107.9	111.1	123.2	206.4	80.2	40.5	65.1	\	68.3	18.3	15.1	17.4	154.8
90	114.3	117.5	129.5	212.7	80.2	40.5	65.1	\	68.3	18.3	15.1	17.4	158.8
95	117.5	120	132.1	222.3	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	172
100	123.8	127	139.7	228.6	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	171.7
105	127	130.2	142.9	228.6	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	174.9
110	136.5	139.7	152.4	241.3	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	184.4
115	136.5	139.7	152.4	241.3	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	184.4
120	142.9	146.1	160.4	263.5	80.2	40.5	65.1	\	68.3	18.3	15.1	20.6	192.4
125	155.6	158.8	184.4	304.8	91.7	91.4	77.3	\	80.5	17.6	14.4	20.6	254
130	161.9	165.1	190.8	311.2	91.7	91.4	77.3	\	80.5	17.6	14.4	20.6	260.4
135	168.3	171.5	203.2	322.3	91.7	91.4	77.3	\	80.5	17.6	14.4	23.8	266.7
140	168.3	171.5	203.2	322.3	91.7	91.4	77.3	\	80.5	17.6	14.4	23.8	266.7
