Sello Mecánico Lubricado para Gas

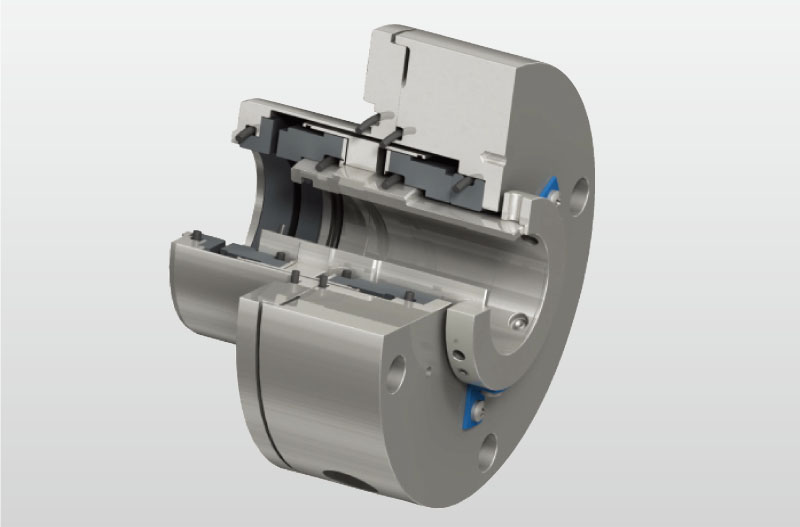

TDSDGS-J03 Sello Mecánico Lubricado para Gas
Dry Gas SealCategories:Sello Mecánico Lubricado para Gas
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:1-817-616-3296
- FAX: 1-817-616-3299
- Email:Info@TDSFluid.com
Related Product

Límites de operación:
Presión: ≤2.1MPa
Velocidad: ≤1450rpm
Temperatura: -20℃~+260℃
● Anillo giratorio (SiC/TC)
● Anillo estacionario (Carbono)
● Sello secundario (VITÓN/Anillo encapsulado/PTFE/EPDM/Kalrez)
● Otras piezas (SUS304/SUS316)
|
Tamaño de sello (mm) |
d1 | d4 | d26 | l12 | l39 | l90 | l91 | l92 | d5 | m | d6 |
| 28 | 28 | 66.68 | 114.30 | 109.52 | 57.15 | 58.72 | 56.37 | 52.37 | 79.38 | M10 | 95.25 |
| 35 | 35 | 73.03 | 127.00 | 103.20 | 52.40 | 60.33 | 54.80 | 50.08 | 85.73 | M11 | 101.60 |
| 38 | 38 | 76.20 | 139.70 | 103.20 | 50.80 | 60.33 | 56.40 | 52.40 | 95.20 | M12 | 114.30 |
| 40 | 40 | 85.73 | 136.53 | 119.67 | 53.67 | 69.00 | 70.00 | 70.00 | 98.43 | M10 | 112.70 |
| 45 | 45 | 88.90 | 165.10 | 119.93 | 65.96 | 71.42 | 57.97 | 57.79 | 110.24 | M12 | 139.70 |
| 48 | 48 | 92.08 | 149.23 | 132.94 | 78.54 | 92.08 | 58.41 | 58.41 | 104.78 | M12 | 127.00 |
| 50 | 50 | 95.25 | 146.05 | 116.65 | 64.28 | 65.07 | 56.37 | 56.37 | 111.13 | M10 | 127.00 |
| 55 | 55 | 98.42 | 180.98 | 118.30 | 65.17 | 72.21 | 57.13 | 57.13 | 119.66 | M16 | 152.40 |
| 60 | 60 | 107.95 | 180.98 | 117.04 | 55.50 | 64.29 | 65.49 | 65.49 | 133.35 | M16 | 152.40 |
| 63 | 63 | 114.30 | 200.03 | 117.09 | 52.39 | 73.03 | 68.70 | 68.70 | 138.56 | M16 | 171.45 |
| 65 | 65 | 117.48 | 177.80 | 117.05 | 52.35 | 103.17 | 68.70 | 68.70 | 130.18 | M12 | 152.40 |
| 70 | 70 | 120.65 | 200.03 | 124.82 | 62.92 | 72.39 | 68.90 | 65.90 | 138.56 | M16 | 171.45 |
| 75 | 75 | 127.00 | 203.20 | 124.99 | 67.84 | 121.44 | 61.15 | 61.15 | 79.38 | M16 | 171.45 |
| 80 | 80 | 133.35 | 195.25 | 131.30 | 71.00 | 119.99 | 64.33 | 64.33 | 85.73 | M16 | 165.00 |
| 90 | 90 | 142.88 | 210.34 | 142.44 | 82.11 | 133.35 | 64.33 | 64.33 | 95.20 | M16 | 177.80 |
| 95 | 95 | 152.40 | 239.70 | 147.65 | 65.15 | 82.55 | 86.50 | 86.50 | 98.43 | M16 | 209.55 |
| 100 | 100 | 158.75 | 248.00 | 157.47 | 113.17 | 127.00 | 48.30 | 127.00 | 110.24 | M20 | 215.00 |
